Máy kiểm tra camera CVI

Model

HE-CVIT1

Physical Port

Network Port

2*10/100/1000M RJ45 port, support switch mode

Function Port

2*BNC port (Video IN and Video OUT), 1*RS485, 1*Audio In, 1*USB, 1*Reset

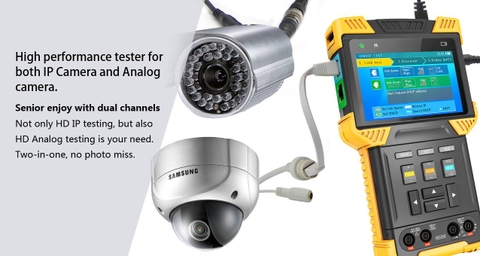

IPC Test

Protocol

ONVIF 2.4.1, RTSP, RTP

Ethernet Test

10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test

IP Configuration

static IP/ DHCP client/ DHCP server

IPC Test

Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(recording original data stream)

HDCVI & Analog Test

SD signal Format

NTSC, PAL

HD video signal

HDCVI

Resolution

D1, 720P, 1080P

Signal Level

1Vpp

Camera Test

Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(H.264)

HDCVI OSD

Camera configuration

PTZ Control

Protocol

More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan etc.

Baud Rate

150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Detection

TDR detection

0~150m net cable detection, resolution 1m

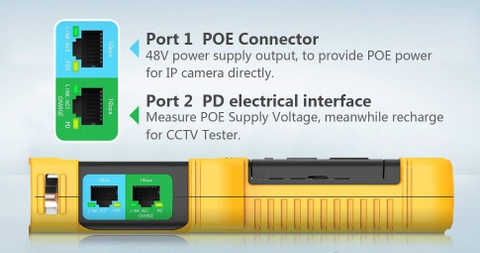

POE test

PD test

PSE test

Network Analyze

Sniff, list subnet, ping

Analog Video Generator

Generate PAL/ NTSC video signal of various test pattern

Record Playback

Support local playback

System Specification

Screen

4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight brightness adjustable

Operation Method

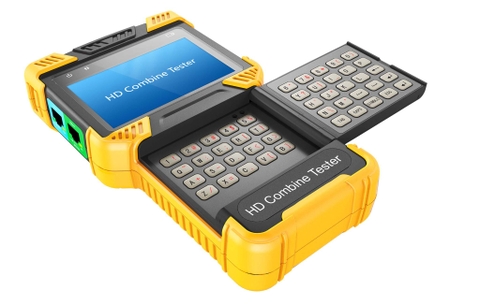

Power key, 12 control keys, QWERTY flip keyboard with 45 keys

Auto Power Off

Disable/ 5~60 minutes

Keyboard Tone

Enable/ Disable

Upgrade

Support online upgrade

Power

Power Input

POE port by POE midspan

POE Midspan

Input AC100~230V 50~60Hz, output 48V/15w

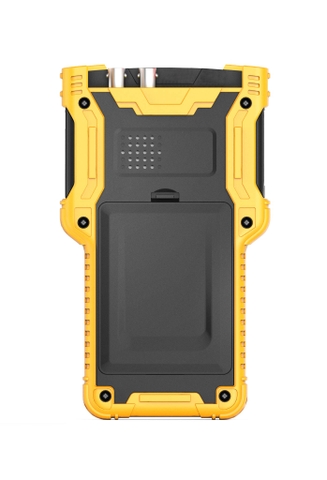

Battery

Dedicate battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 22.2Wh

Power Output

POE (802.3af, 802.3at)

DC12V 2A

Time

Charging time 3~4 hours, working time 10 hours

Other

Internal Storage

8GB flash

LED Light

2*35lm LED light

Working Temperature

-10℃~+55℃

Working Humidity

30%~90%

Dimensions

190x113x37mm

Weight

1.6kg
